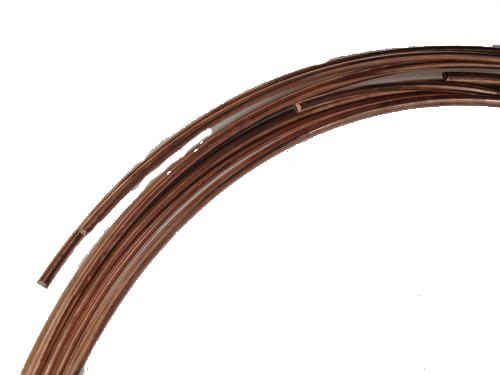

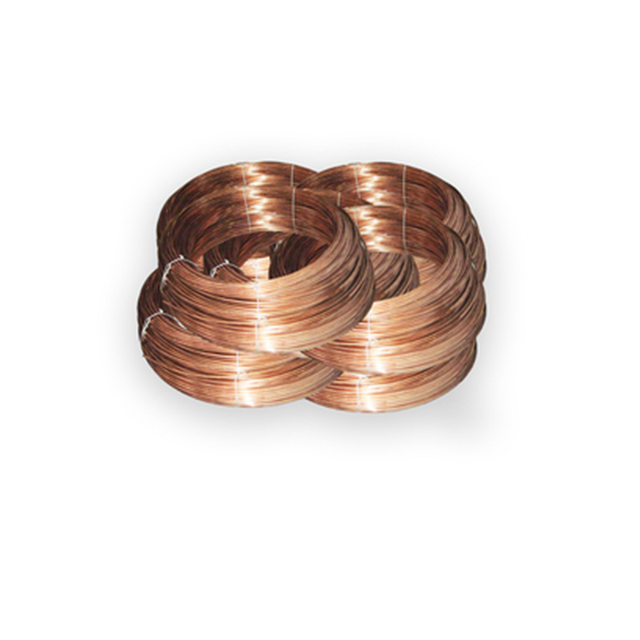

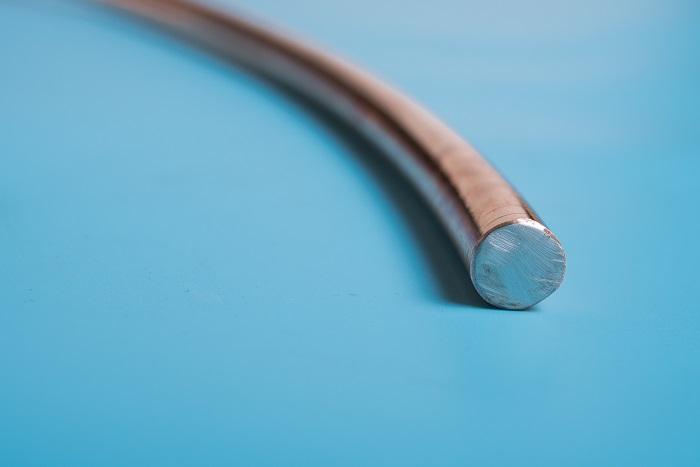

Copper-clad steel round wire
Applications for Soft-Temper Single-Strand Copper-Clad Steel Round Wire: Suitable for use as horizontal grounding electrodes in demanding applications—including functional, protective, lightning protection, and anti-static grounding—across both standard environments and challenging conditions such as damp, saline-alkali, or acidic soils, as well as environments containing chemically corrosive agents.
Features:
Utilizes the skin effect principle; its electrical conductivity is comparable to that of pure copper wire, while its excellent magnetic permeability facilitates the transmission and dissipation of lightning currents.
Lightweight, high-strength, and easy to install.
Undergoes special heat treatment to achieve a soft temper and is available in long continuous lengths, significantly reducing the number of linear connection points.
Manufactured using a horizontal continuous casting process, resulting in a metallurgical molecular bond and a long service life.
Offers superior and unique corrosion resistance; the high-temperature bonding process ensures no residue or corrosion at the interface. The thick surface copper layer (average thickness ≥ 0.254 mm) provides robust corrosion resistance and a service life exceeding 50 years, greatly reducing the labor intensity of maintenance. The product is suitable for grounding and lightning protection across varying soil conditions (humidity, temperature, pH, and resistivity). It is commonly used for rooftop parapet lightning protection strips, vertical grounding risers/down-conductors, and horizontal grounding electrode connections. While electroplated copper-clad steel offers superior mechanical properties, continuously cast copper-clad steel excels in corrosion resistance; therefore, continuously cast copper-clad steel round wire is recommended for environments with severe corrosion where mechanical stress requirements are moderate (e.g., horizontal grounding electrodes in highly acidic soil). Please select the appropriate type of grounding round wire based on specific site conditions.
【Features of Copper-Clad Steel Single-Strand Soft-Temper Round Wire】
Utilizes the skin effect principle; its electrical conductivity is comparable to that of pure copper wire, and its good magnetic permeability facilitates the transmission and dissipation of lightning currents.
Lightweight, high-strength, and easy to install.
Processed via special heat treatment to achieve a soft temper and long continuous lengths, significantly reducing the number of linear connection points.
Manufactured using a horizontal continuous casting process, resulting in a metallurgical molecular bond and a long service life.
【Dimensions of Copper-Clad Steel Single-Strand Soft-Temper Round Wire】
Diameter Series ф8 ф9 ф10 ф11 ф12 ф13 ф14 ф15 ф16

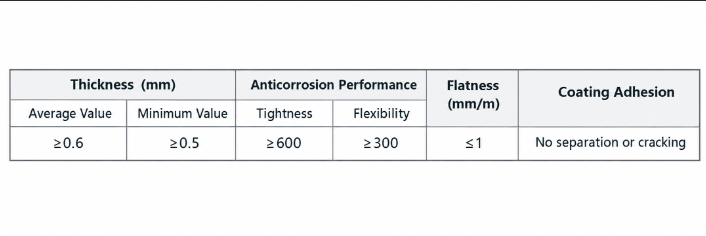

【Performance of Copper-Clad Steel Single-Strand Soft-Temper Round Wire】
Copper Layer Thickness (mm) Tensile Strength Straightness
mm/m Copper Layer Bonding
Average Value Thinnest Point Hard Temper Soft Temper
≥0.6 ≥0.5 ≥600 ≥300 ≤1 Metallurgical molecular bond
Copper layer thickness (mm) Tensile strength Flatness
mm / m Mean Thinnest point Hard state Soft state
≥0.6 ≥0.5 ≤1 Metallurgical molecular bindin
