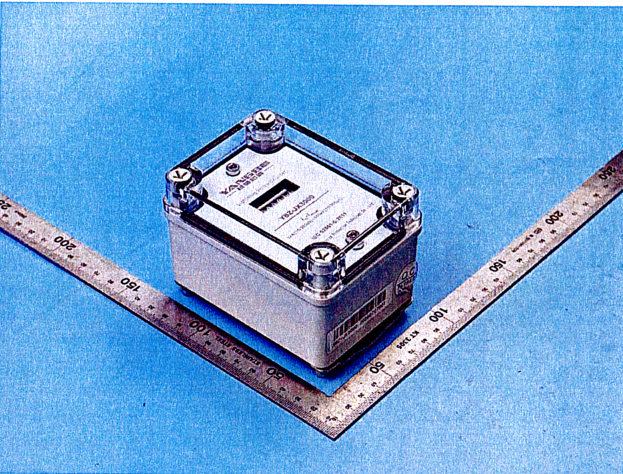

Functions and applications
This product is used to count direct lightning strikes in external lightning prote ction systems suchas air terminals and down conductors or to count lightning strikes in T1 and T2 arresters. -Wide operating current range, can be used for 10/350us and 8/20us lightning strikes.- Mechanical meter head, no need for power supply, reliable performanceThe protection level reaches IP67 and can be used outdoors.

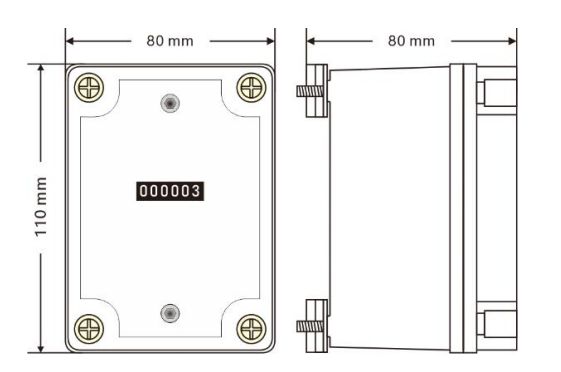

Outline-dinensional-draving

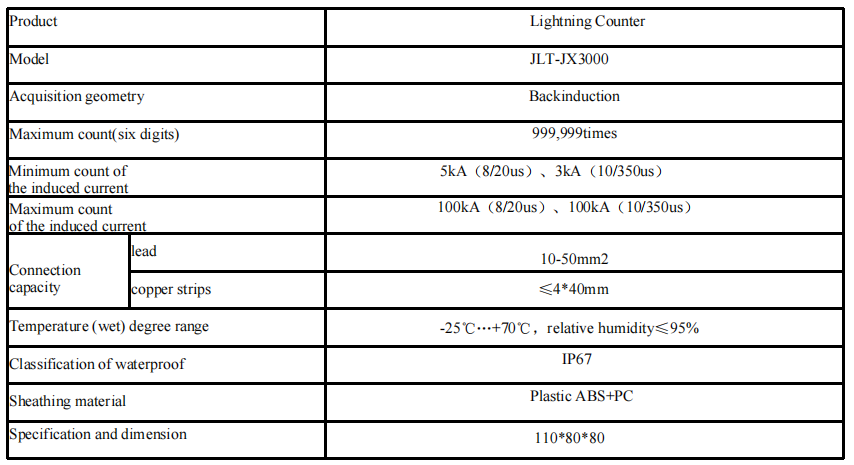

Technical Parameters

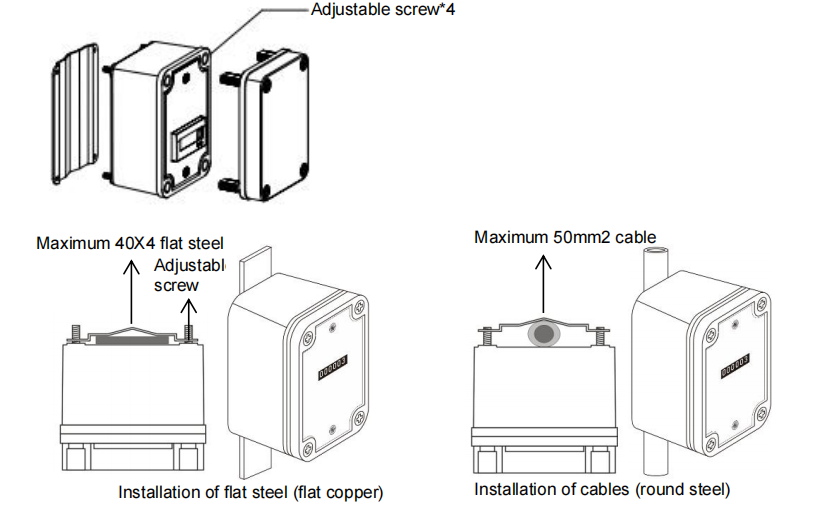

Installation diagram
Installation instruction and maintenance
Installation preparation: Please read this manual carefully before installation and prepare a Phillips scre wdriver
1. The lightning counter can be fixed on 40X4 flat steel or 10-50mm2 cable or round steel.
2. Use a cross screwdriver to remove the transparent cover, loosen the screws in the 4 diagonal holes,and adjust or remove the lightning counter installation bracket.
3. Place the collected wires (copper bars, cables, down-leads) in the fixed bracket, and then tighten thescrews in the 4 diagonal holes until they are secure.After setting the counter, install the transparent cover of the counter.
4. This product is installed on lightning rods, lightning protection belts, and down conductors to monitorand record surge voltage intrusion in power lines.situation; it can also be installed on various surge protector (SPD) ground wires to monitor and record the number of lightning intrusions
5. The wires that need to be monitored must pass between the counter and the fixed bracket, regardless of the direction.
6. The counter will have 2-5 lightning strike test records when it leaves the factory. This counter cannotbe cleared.
7. This product does not require debugging. It is generally in working condition after being connected. When the counter records to [999999], please replace the lightning strike counter with the same specification.
