Mechanical connector

Flat cross section to flat cross section

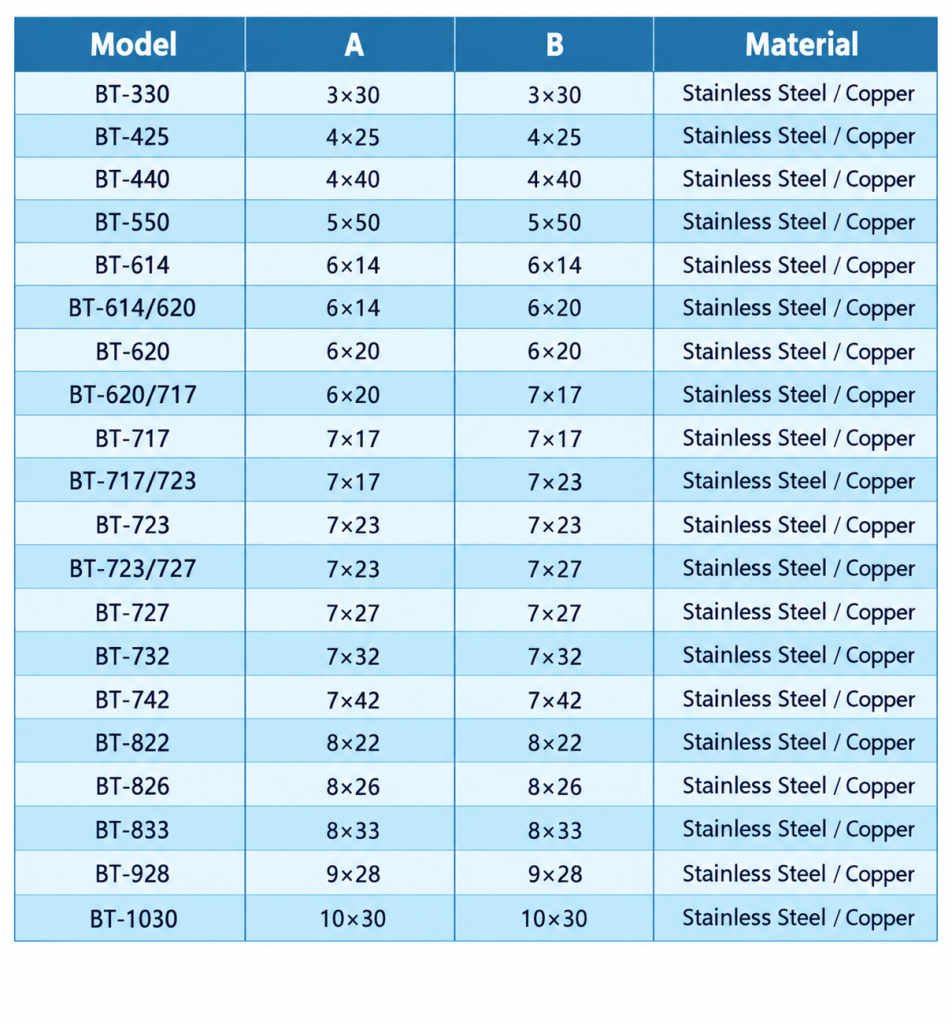

T-type connection
Connection of grounding wires of the same (different) specifications

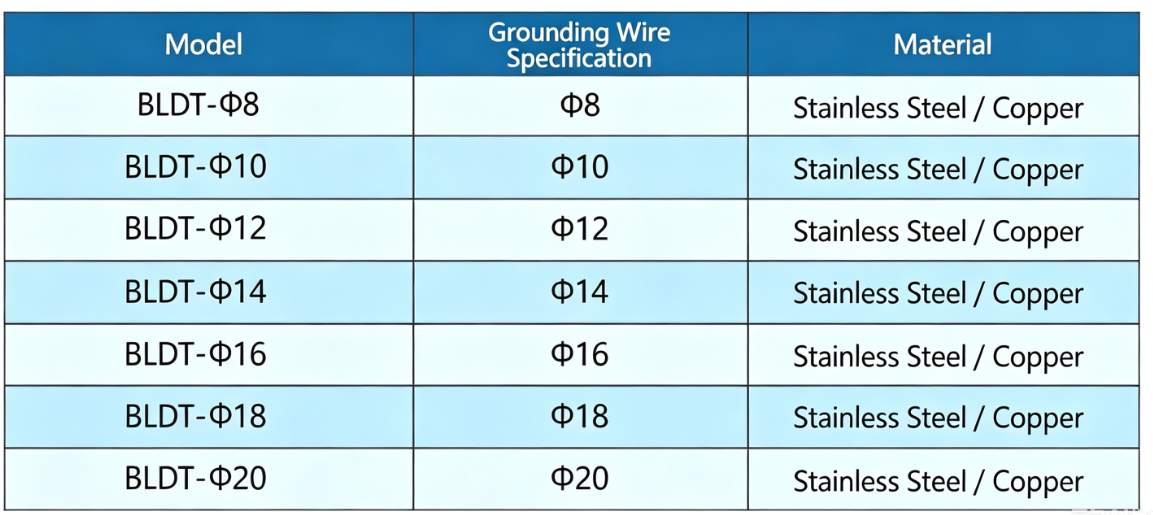

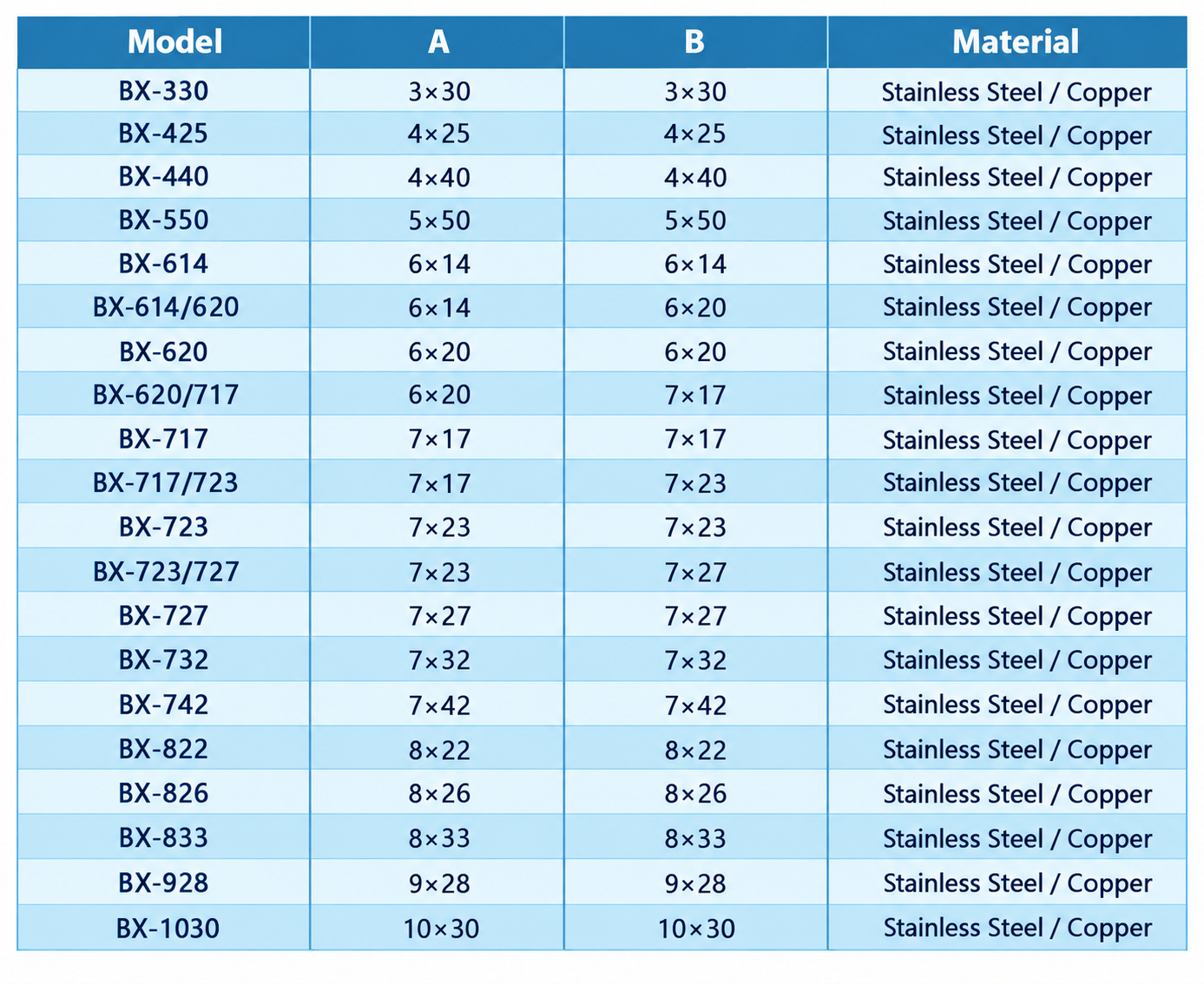

Cross-shaped connection

T-type connection
Connection of grounding wires of the same (different) specifications

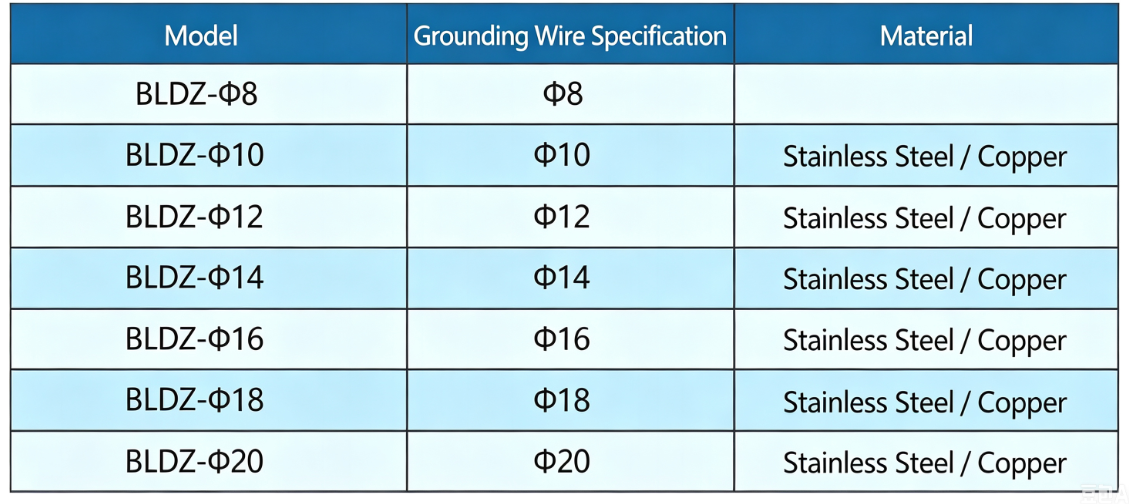

Circular cross section and circular cross section

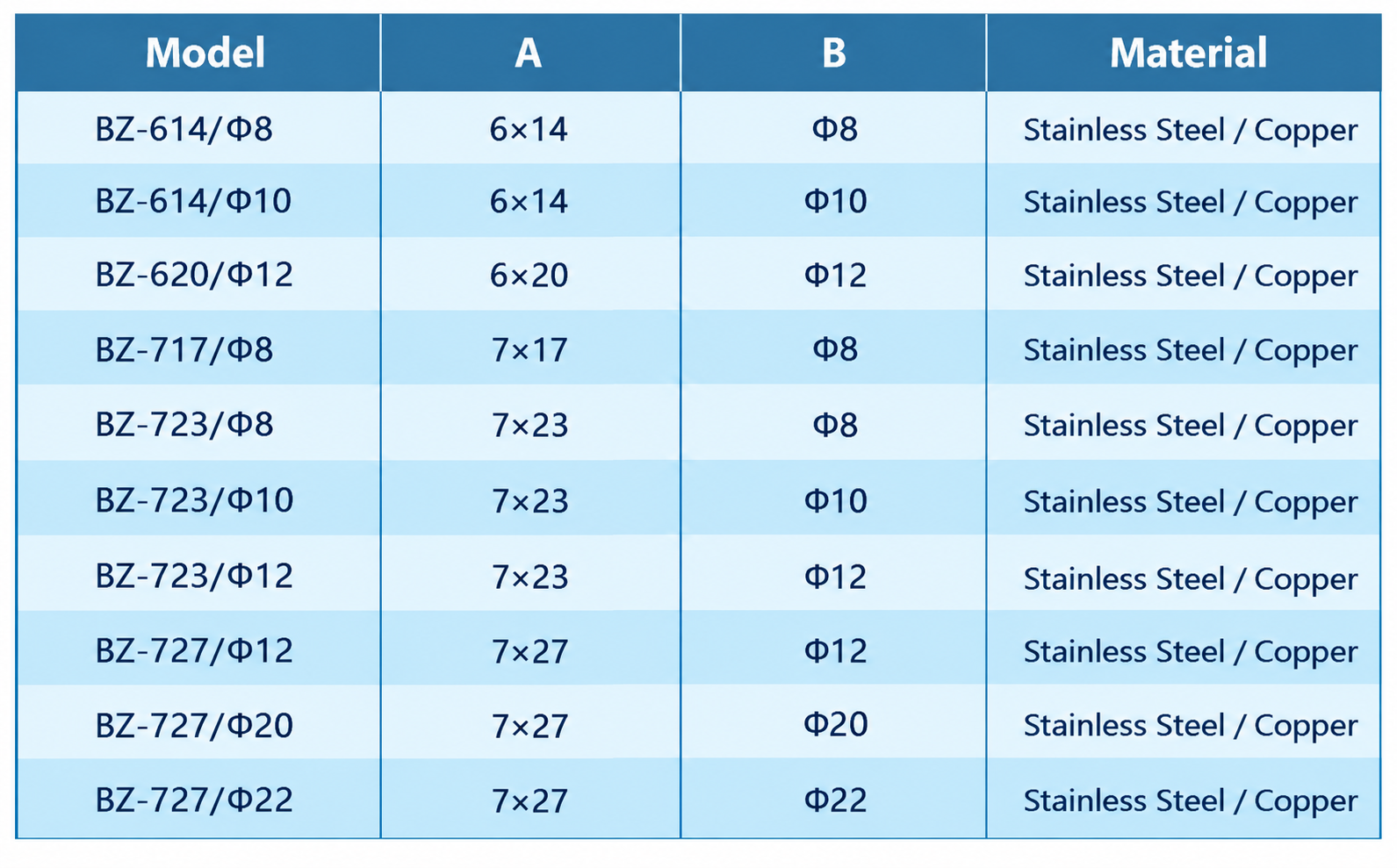

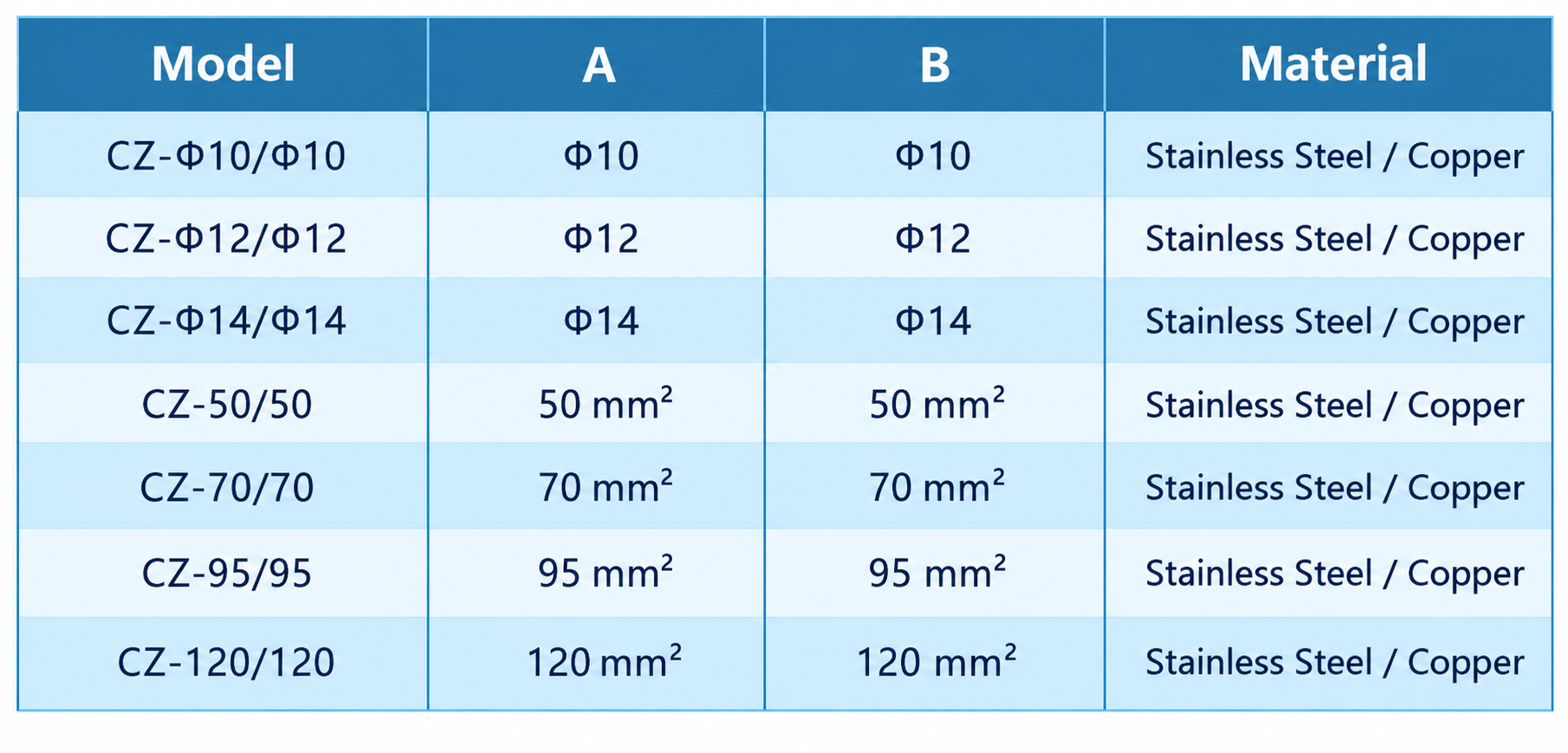

Straight-line connection

Connecting grounding wires or stranded copper wires of the same specification.

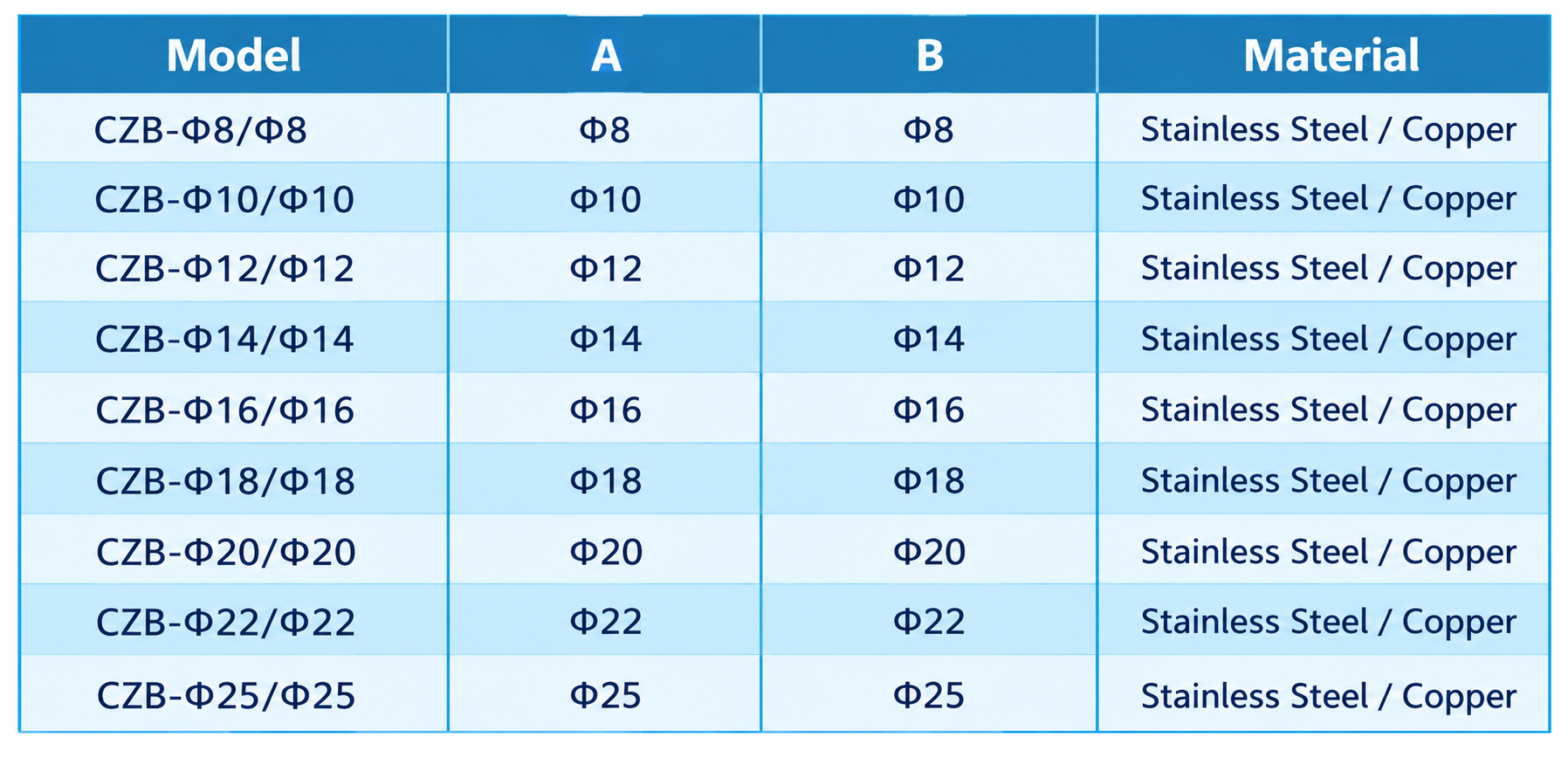

Straight-line connection

connection of grounding wires of the same or different specifications.

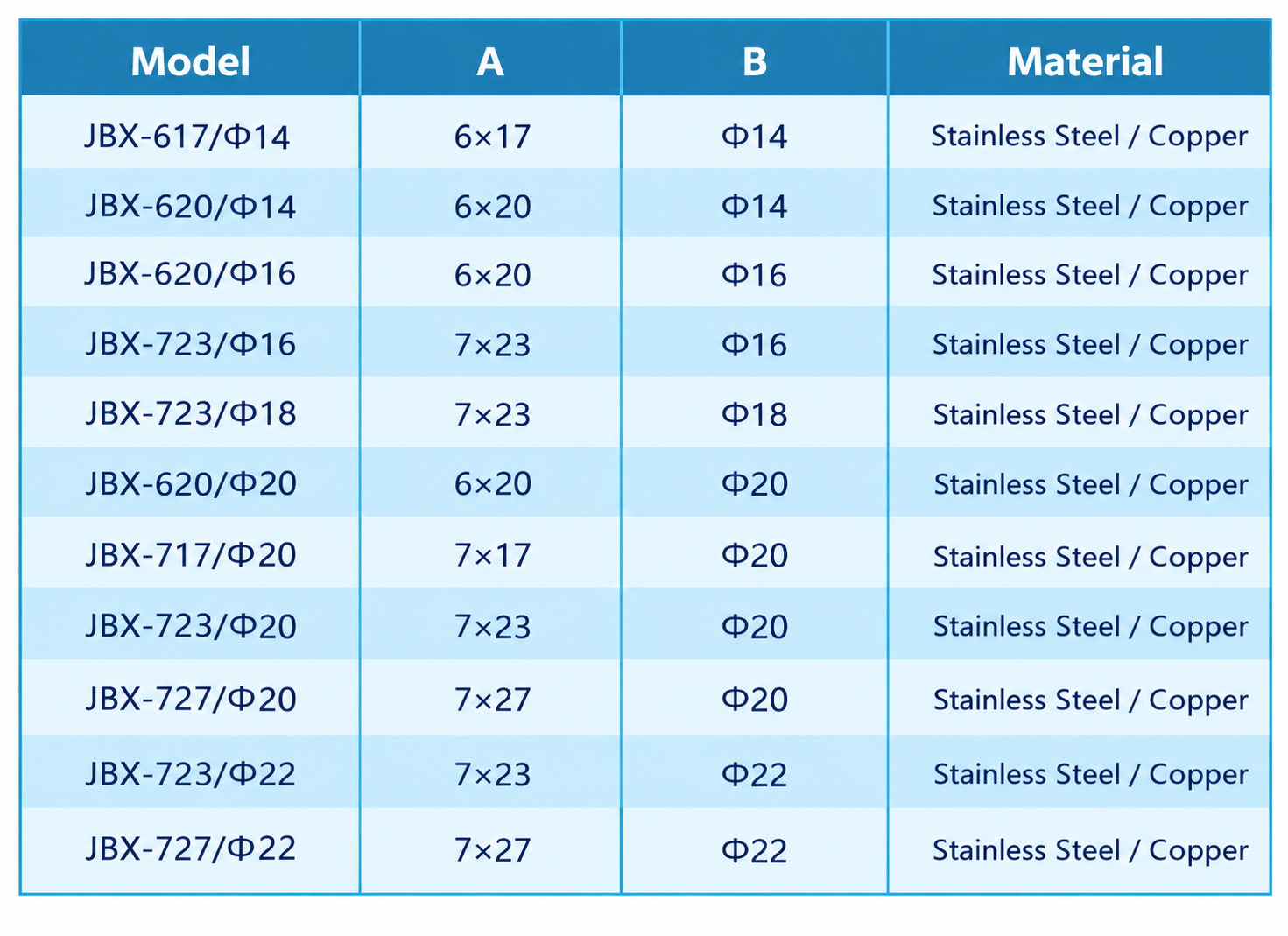

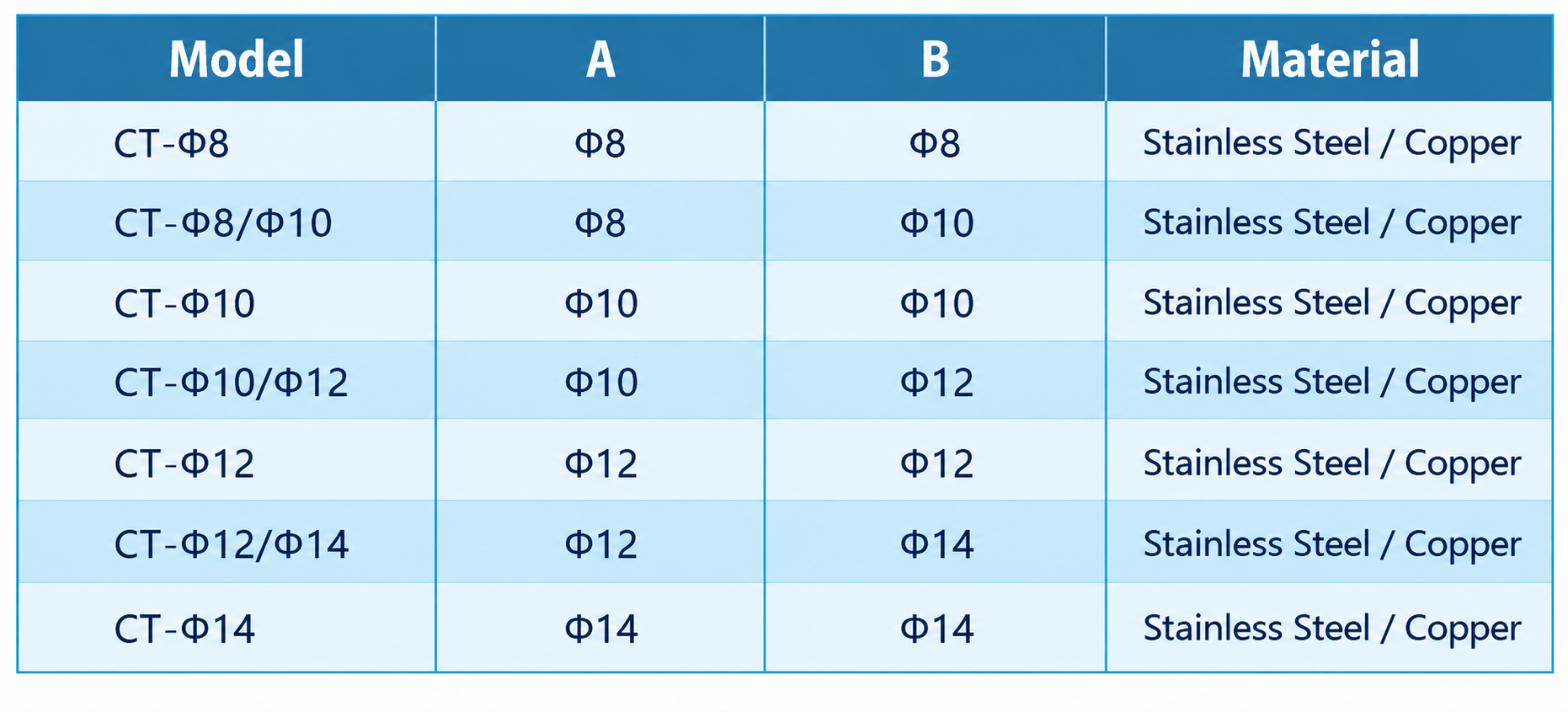

T-connection

Connection of grounding wires of the same (or different) specifications.

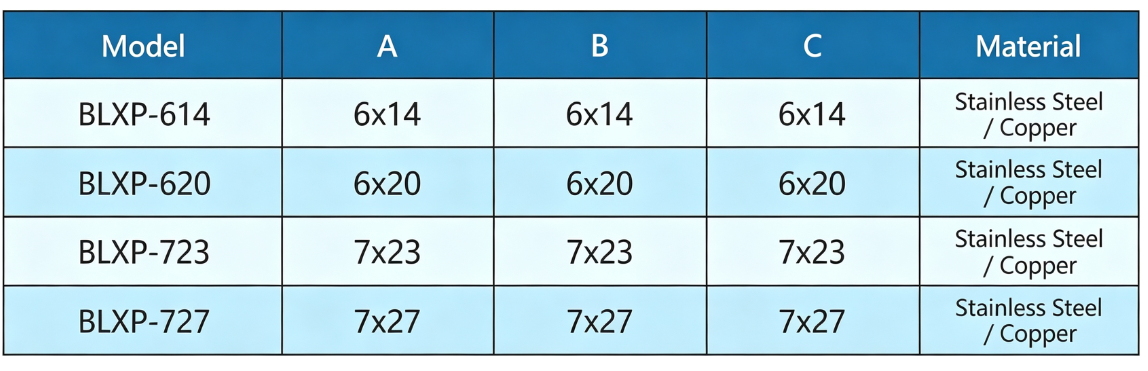

Cross-shaped connection

Connection of grounding wires or stranded copper wires of the same (or different) specifications.

Straight-line connection

between circular and flat cross sections

T-connection

Connection between grounding electrode and grounding wire

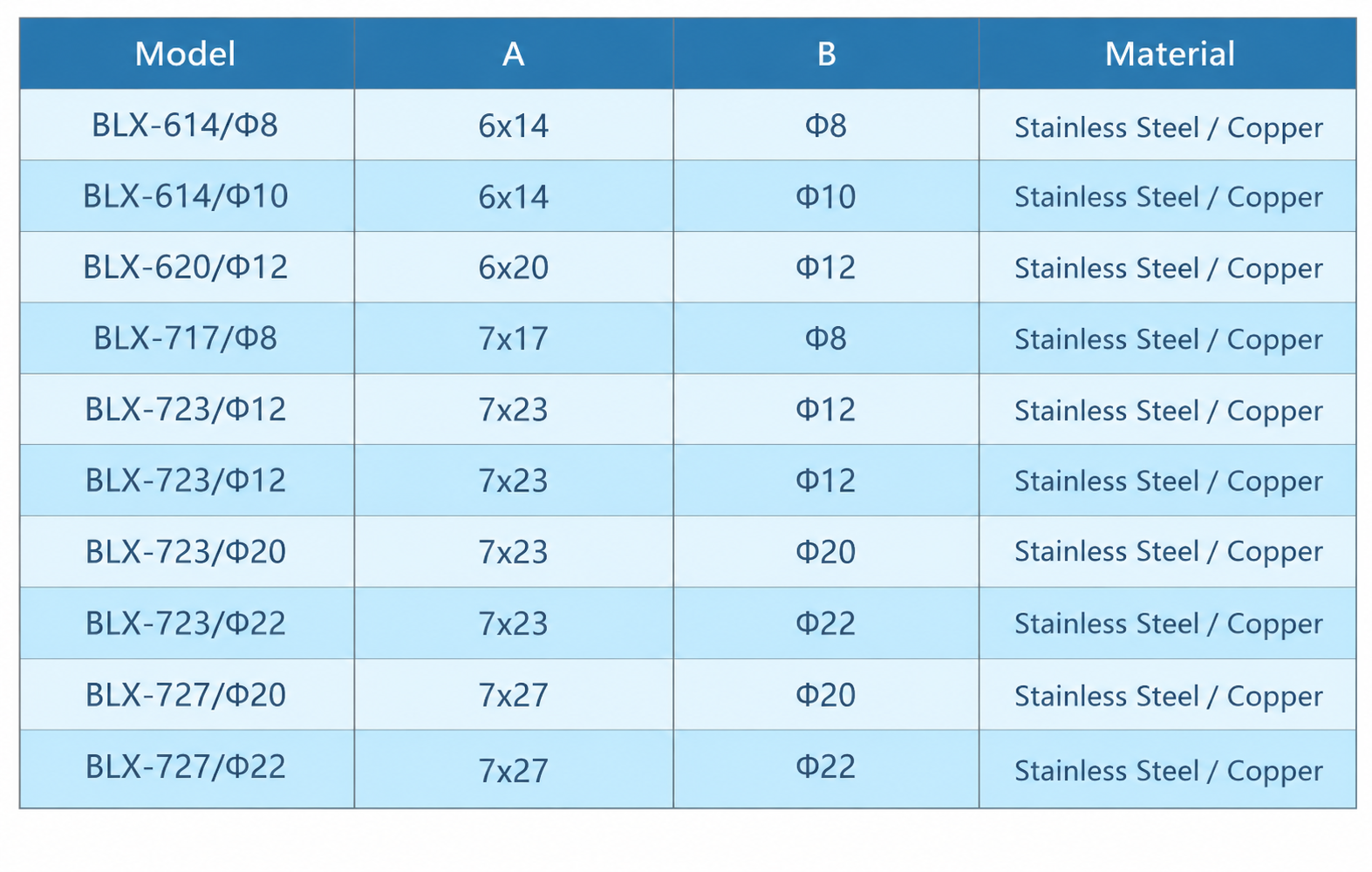

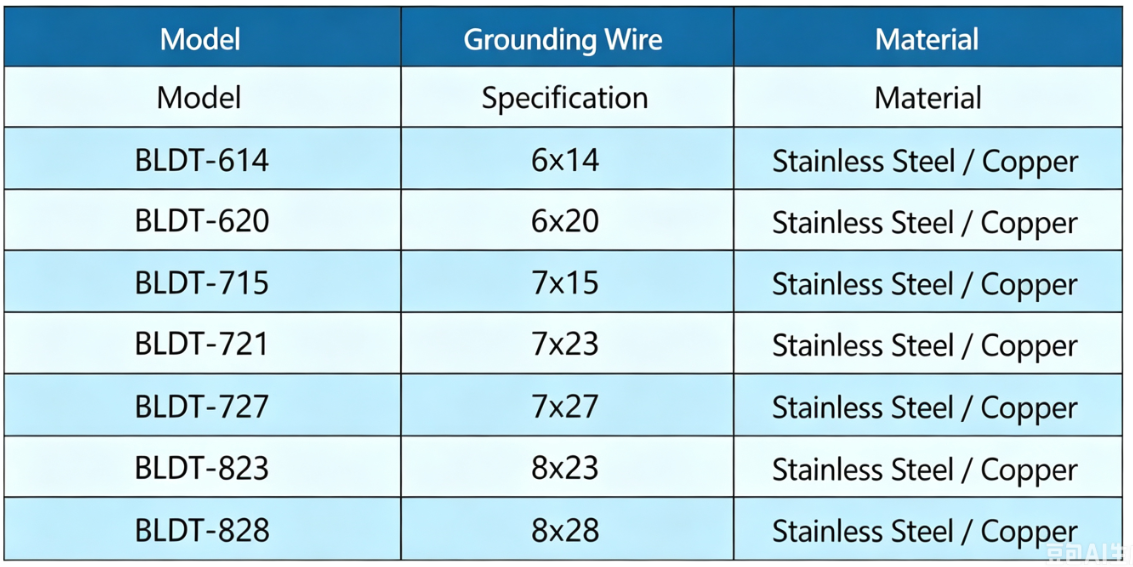

Cross-shaped connection

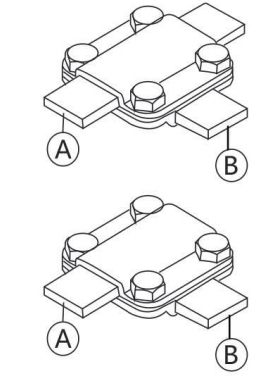

Split-plane connectors

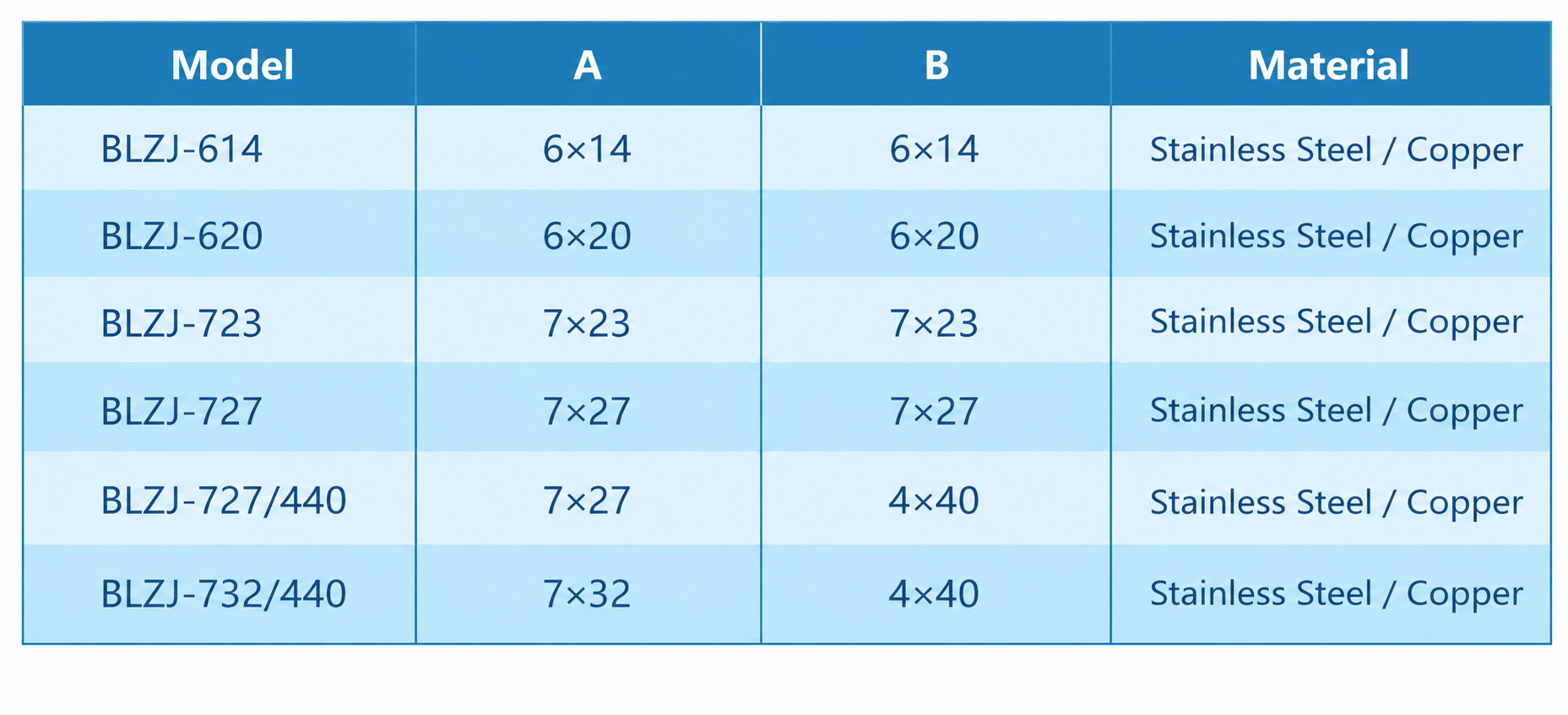

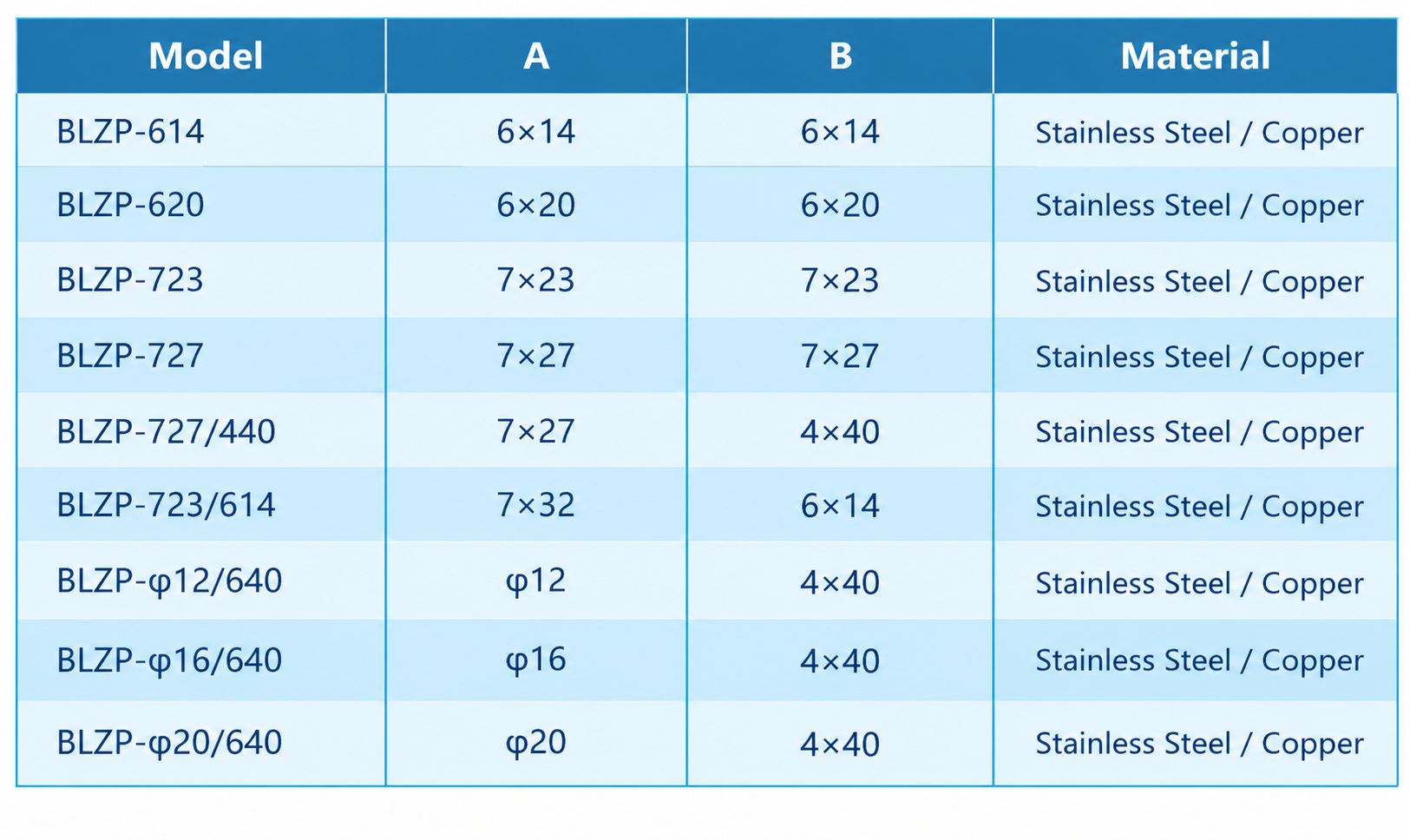

Linear planar split-plane connectors

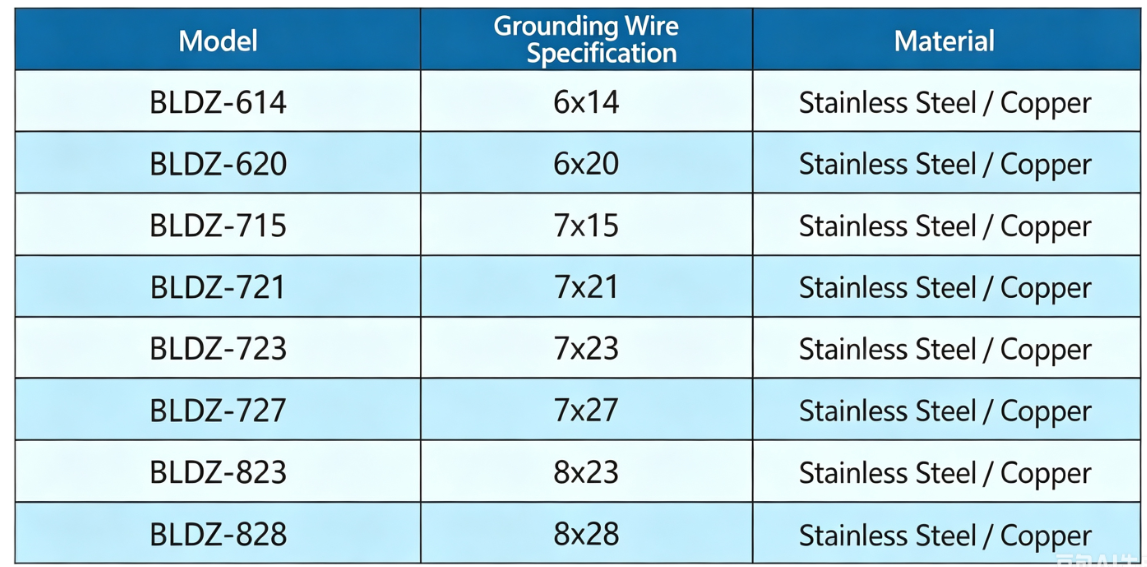

Straight Angle Split Connector

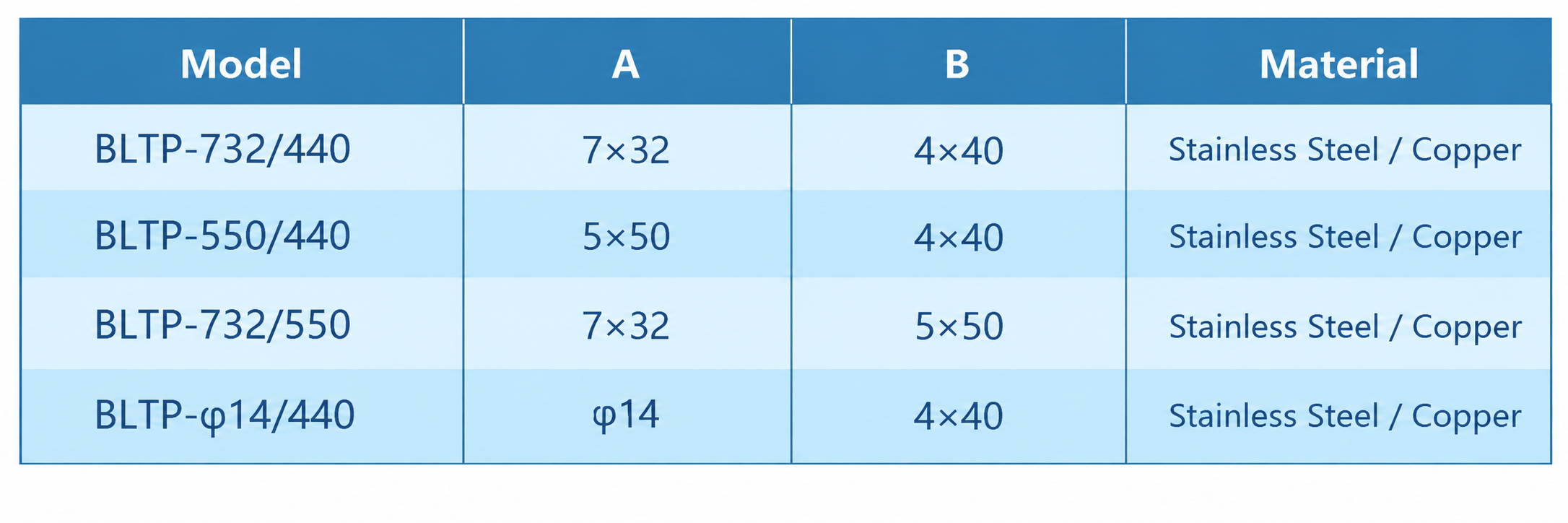

Cross-plane split connector

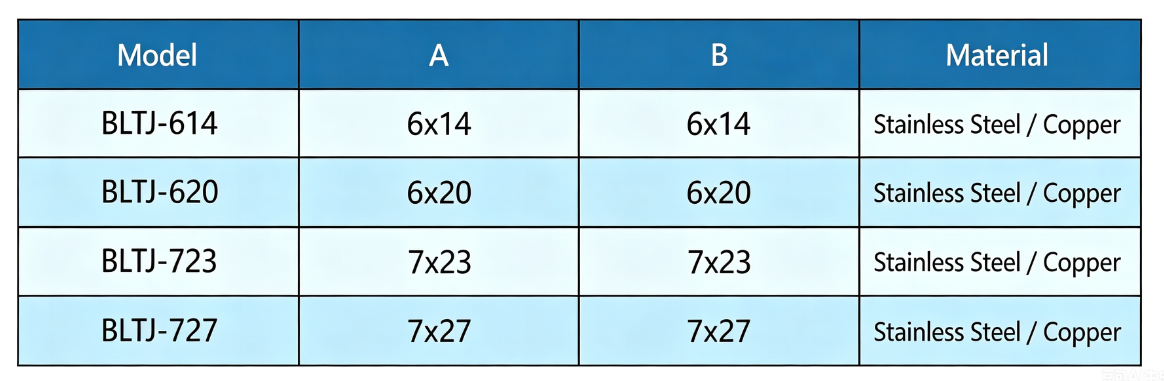

Cross angle ruler split connector

Cross-shaped connection on the same plane

Connection terminals

Used for connecting grounding wires (x) to flat steel, copper strips, connecting pieces, grounding lugs, and equipment.

Straight line connection
Circular line

flat line

Crossover cable

Circular line

flat line

appendix

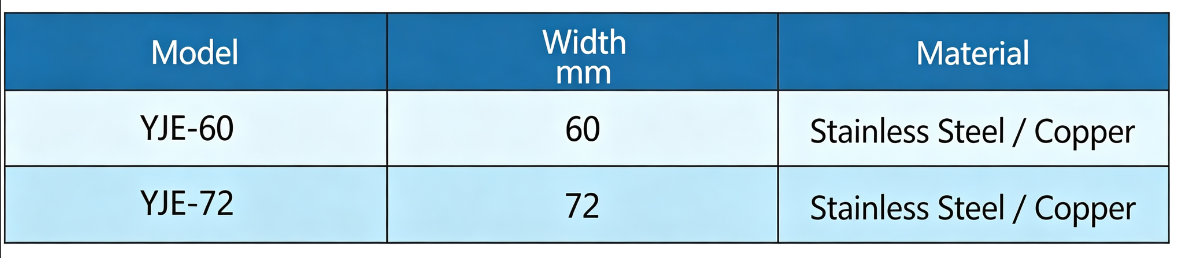

Grounding lug

One end is welded (connected) to the equipment or steel structure. The other end connects to the connection terminal.

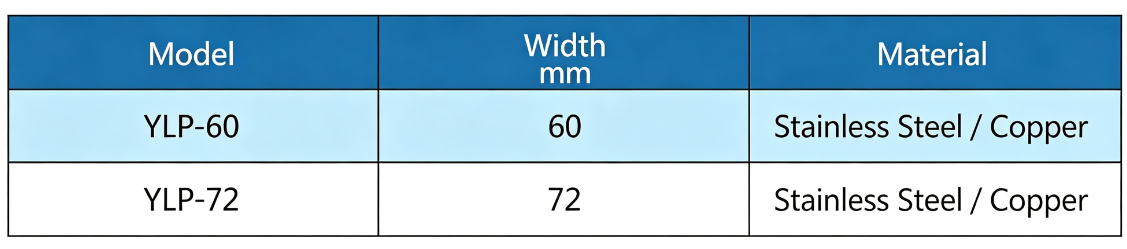

Connecting piece

One end is welded (connected) to the equipment (steel structure). The other end is connected to the connection terminal.

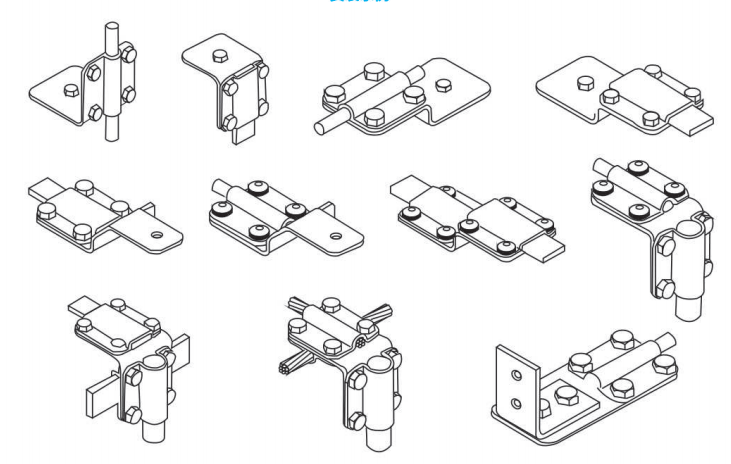

Installation Example

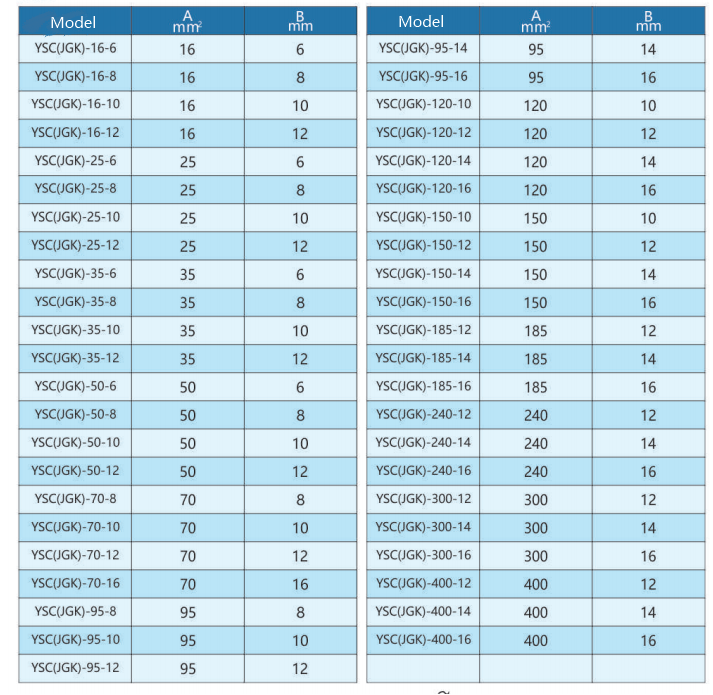

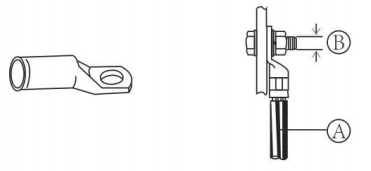

copper nose

compression connector

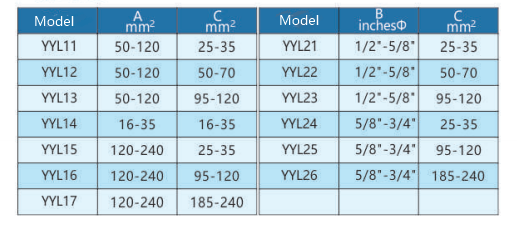

“6” shaped connector

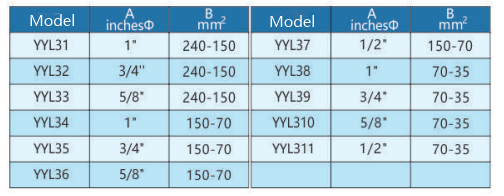

“8” shaped connector

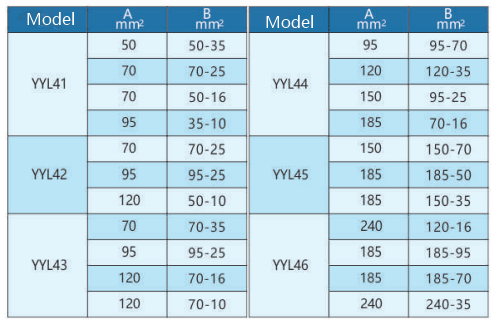

“C” shaped connector

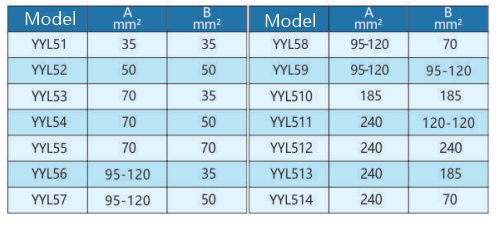

Grid connector

The bar clamp is used to connect the grounding electrode (round bar) to the grounding wire (flat strip, round bar, stranded wire, wire lug).

Round bars and flat wires material: copper.

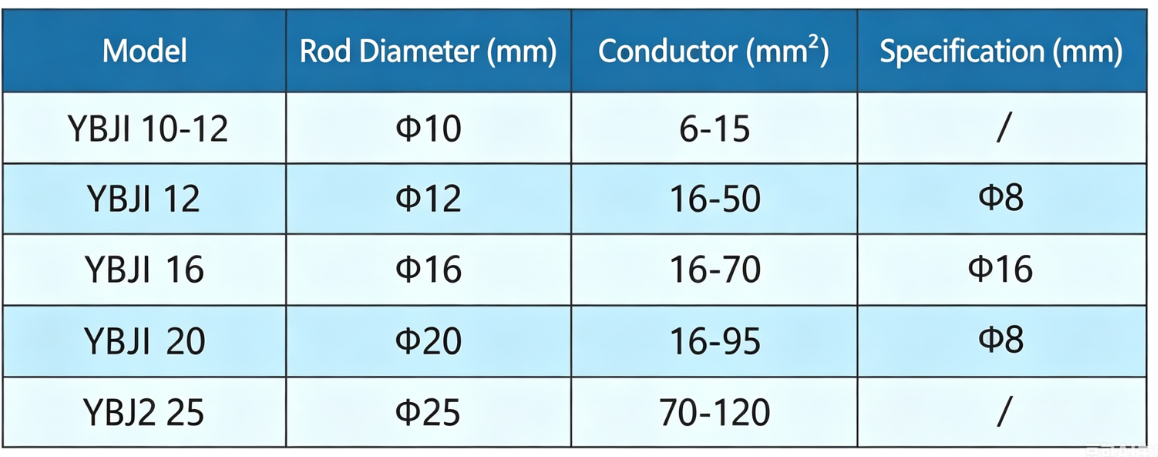

Round bars and stranded wires, round bars (YBJ2) material: copper

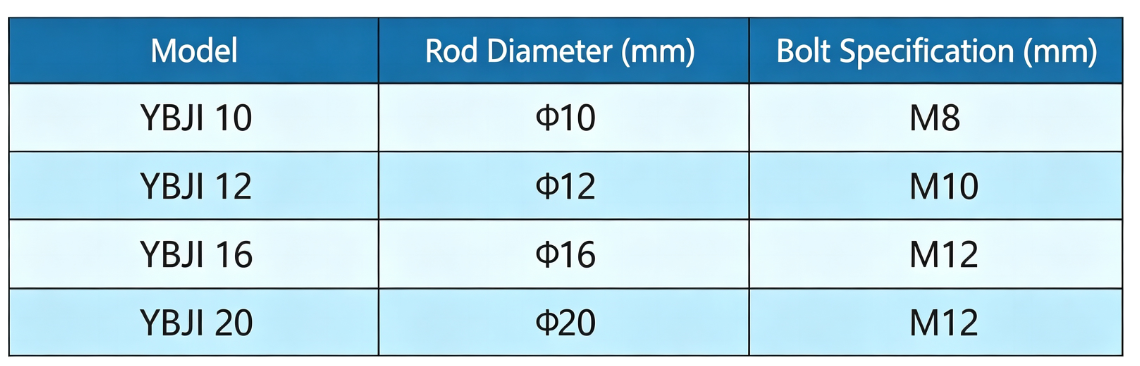

Round bar and wire lug (YBJ3) Material: Copper

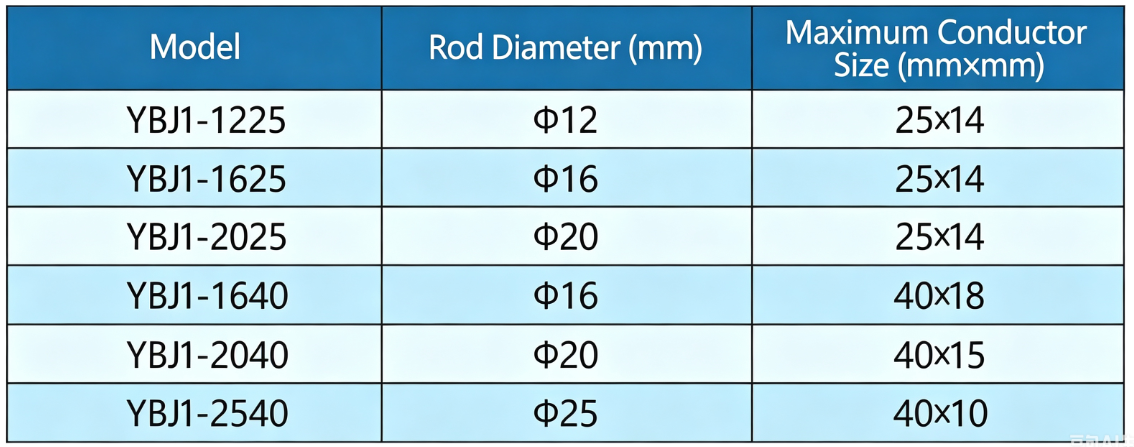

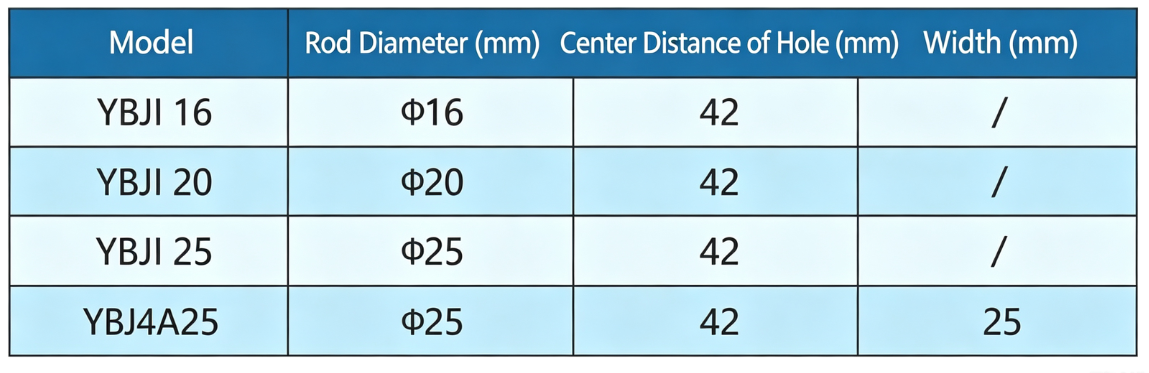

Round bars and flat strips (YBJ4) Material: Copper

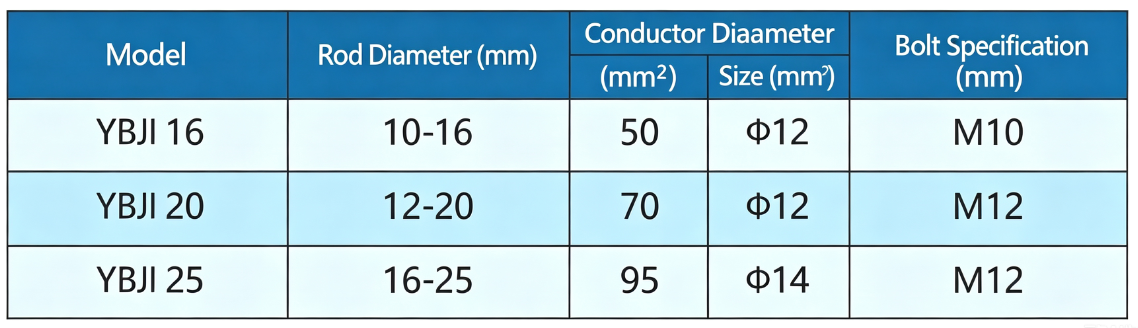

Round bars and stranded wires, round bars (YBJ5) material: copper

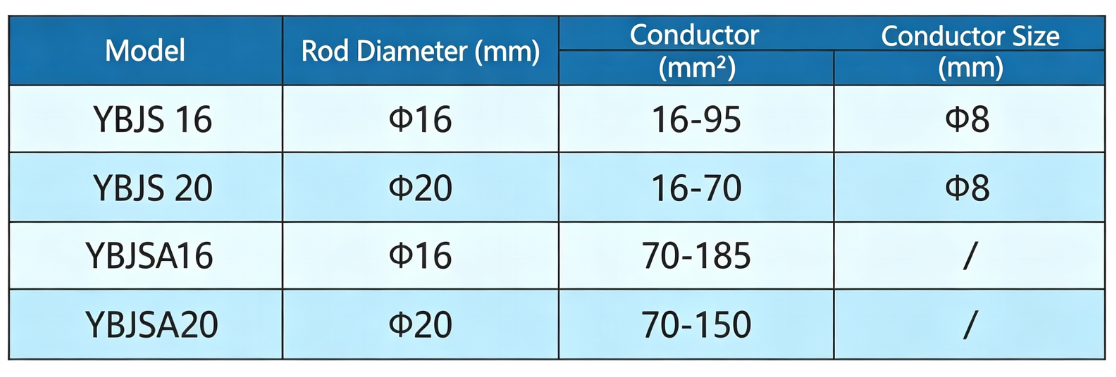

Round bar and stranded wire; Round bar material: copper
Material: copper

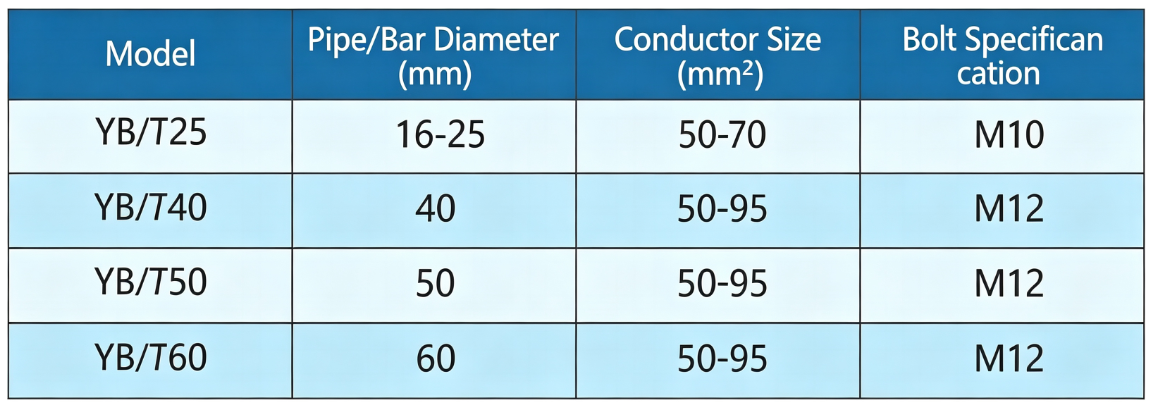

Round bar (tube) and single stranded wire: Copper.

The stranded wire can be connected horizontally or vertically to the round bar (tube) as needed.

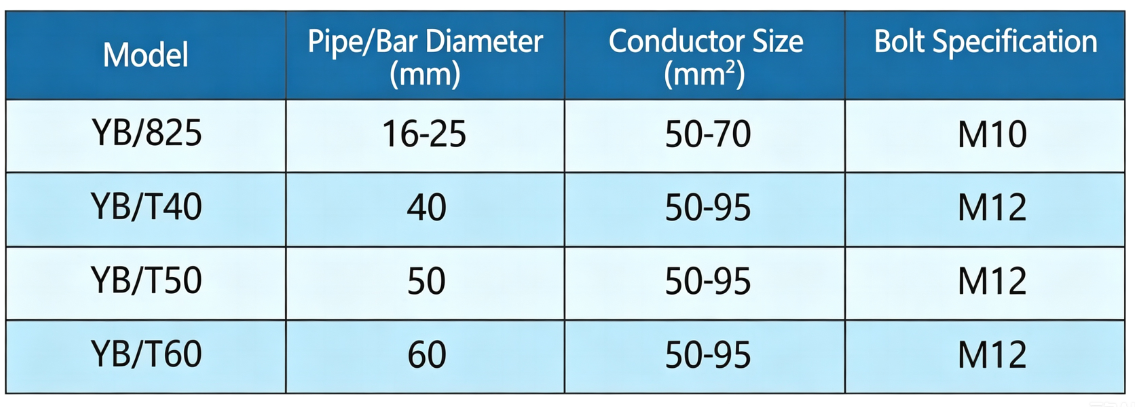

The round rod (tube) and two stranded wires : copper

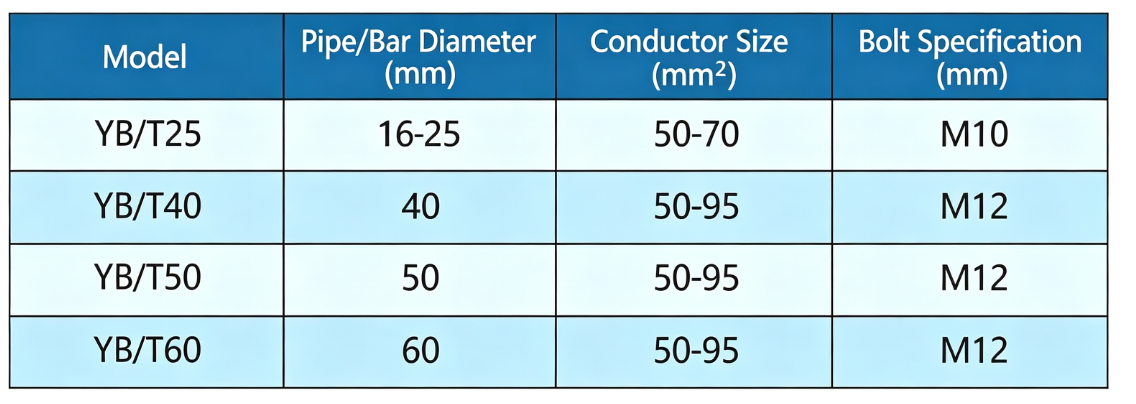

The round rod (tube) and three stranded wires : copper

Grounding wire (lightning protection) is used for grounding connection to a cylindrical metal fitting.

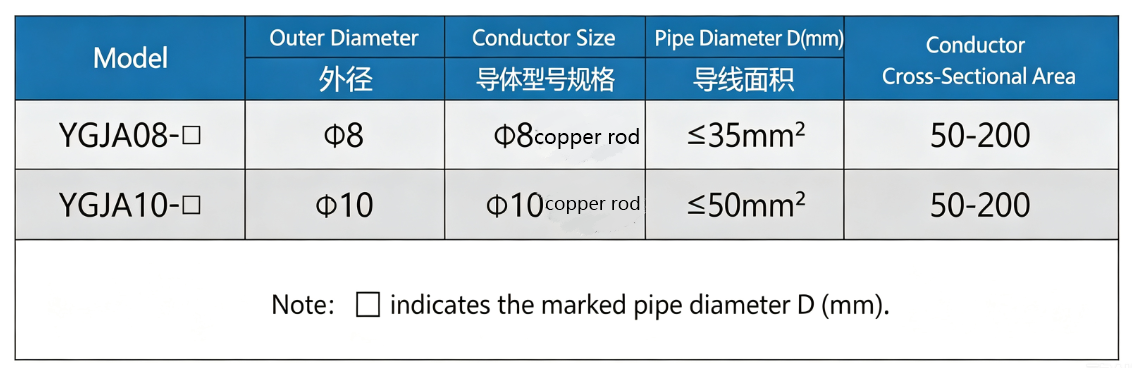

Pipe clamp A is used for cylindrical or stranded conductors.

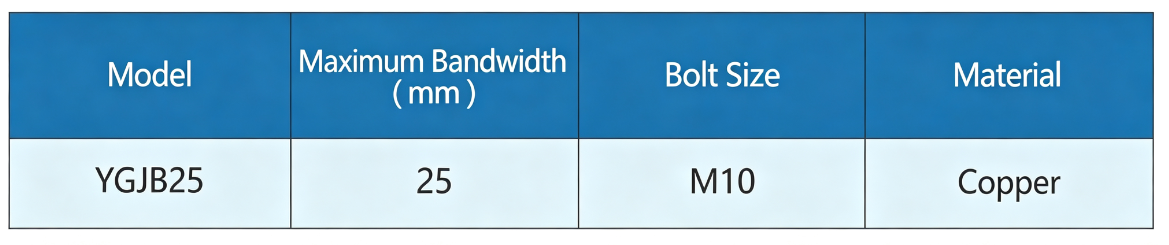

Pipe clamp B is suitable for flat-strap conductors.

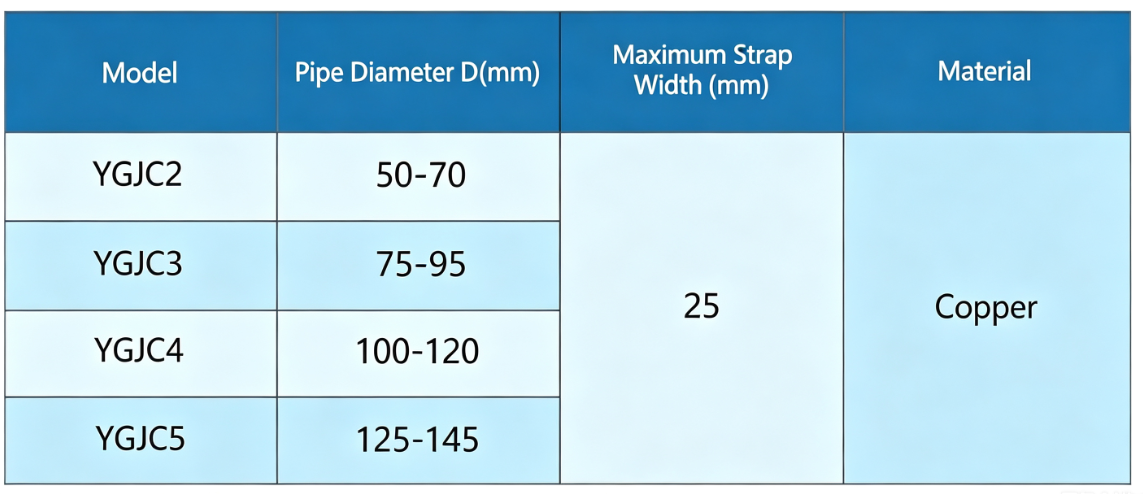

Pipe clamp C is suitable for flat-strap conductors.

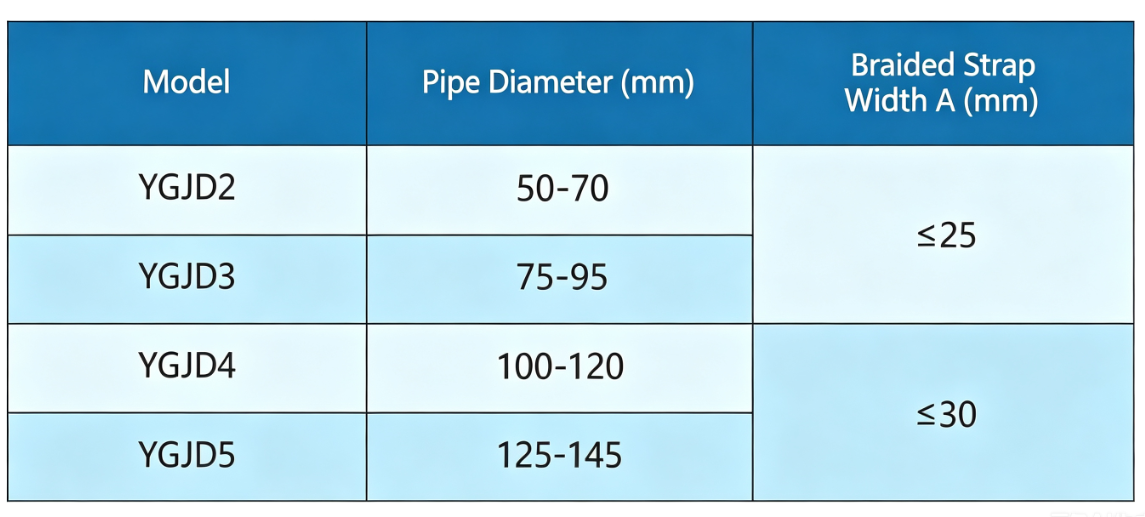

Pipe clamp D is suitable for braided-strap conductors.

Pipe Clamp E

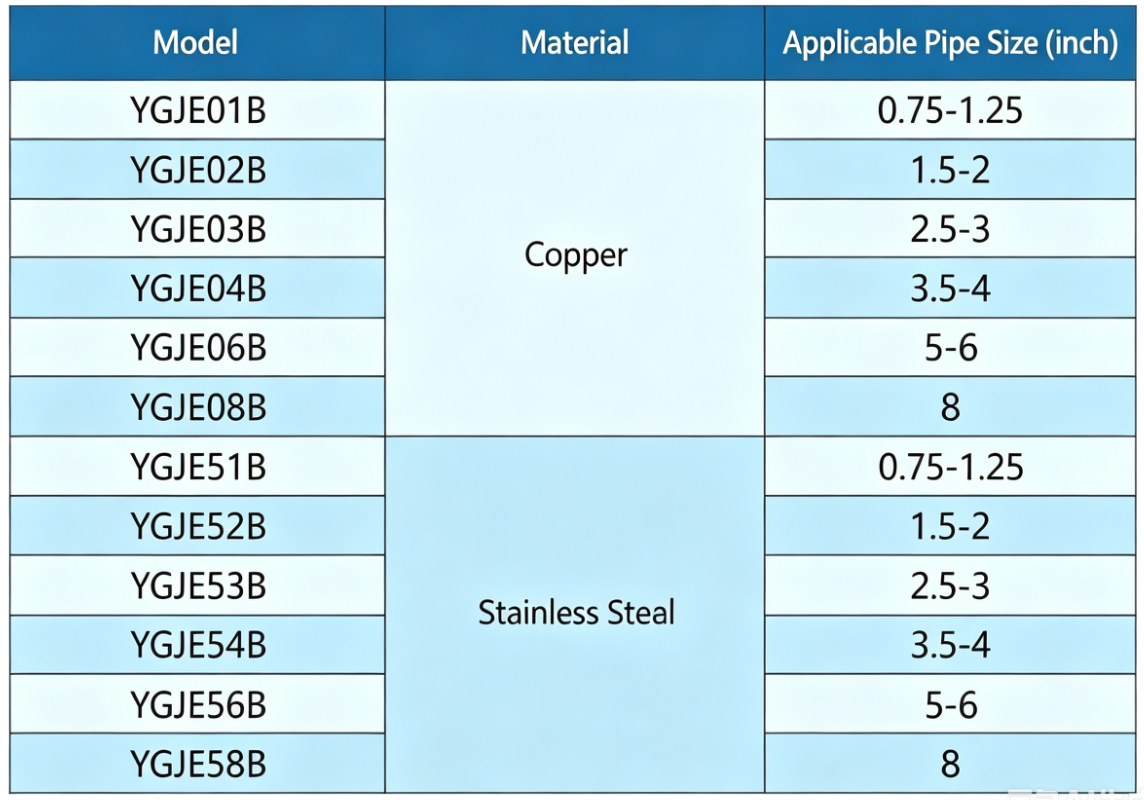

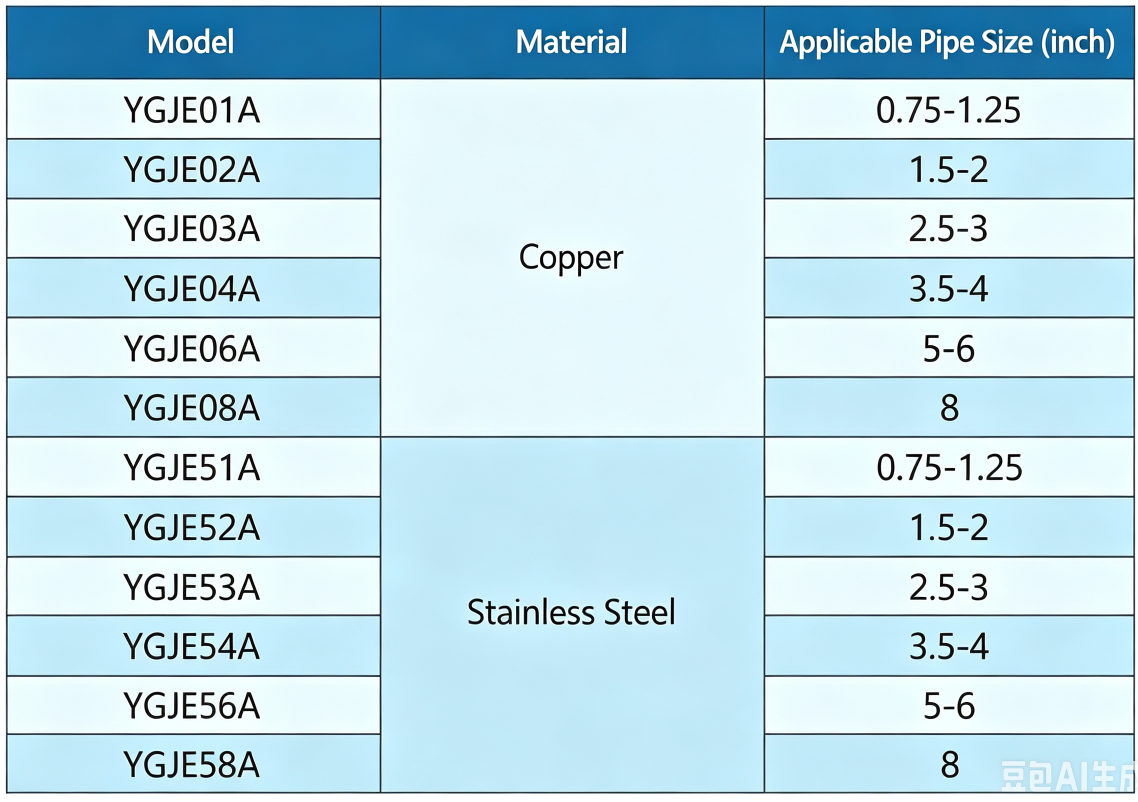

Used for clamping and connecting pipes. Available in Type A and Type B. Material: Copper or stainless steel.

A-TYPE

B-TYPE

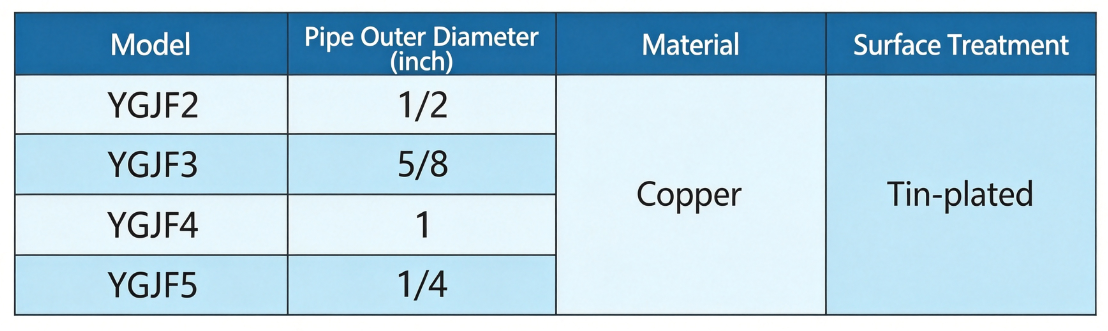

Pipe Clamp F is Suitable for tap-off connections for small-diameter pipes (or rods). Connections are made using cable lugs; supplied as a two-piece set, including standard mounting hardware.

Pipe clamp G is suitable for round rod or stranded conductors.

Pipe clamp H
Used for connecting larger-sized pipes to round rods or stranded conductors.

Pipe Clamp I
Suitable for the grounding installation of metal pipes.

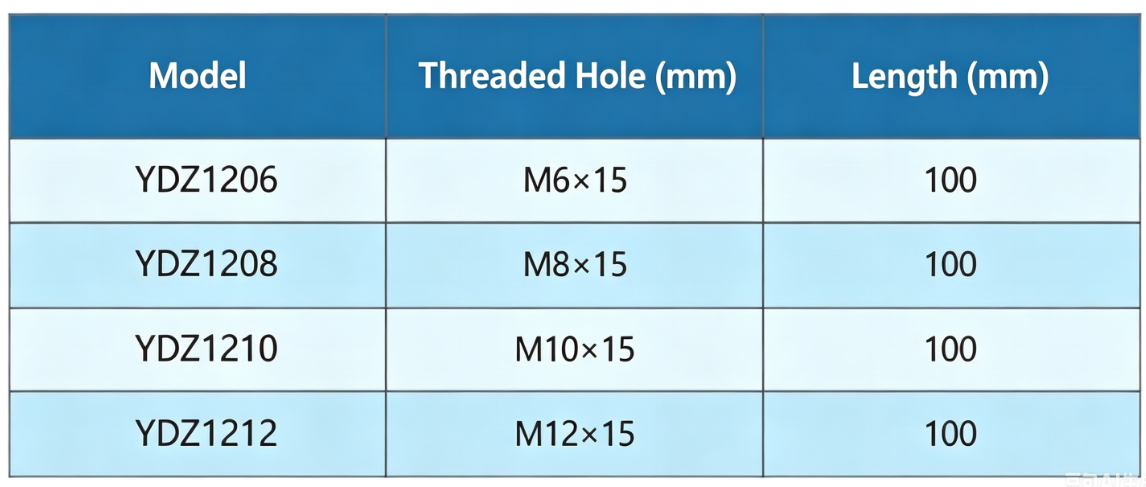

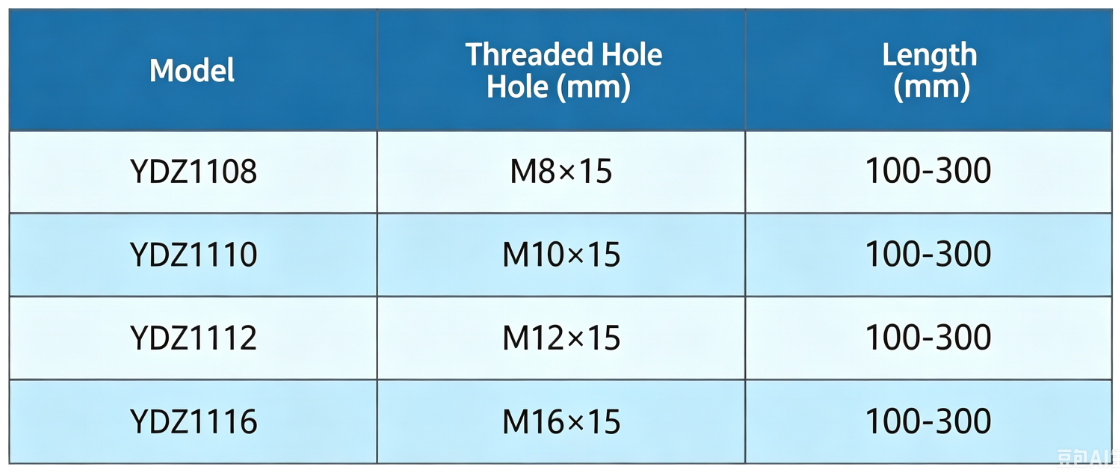

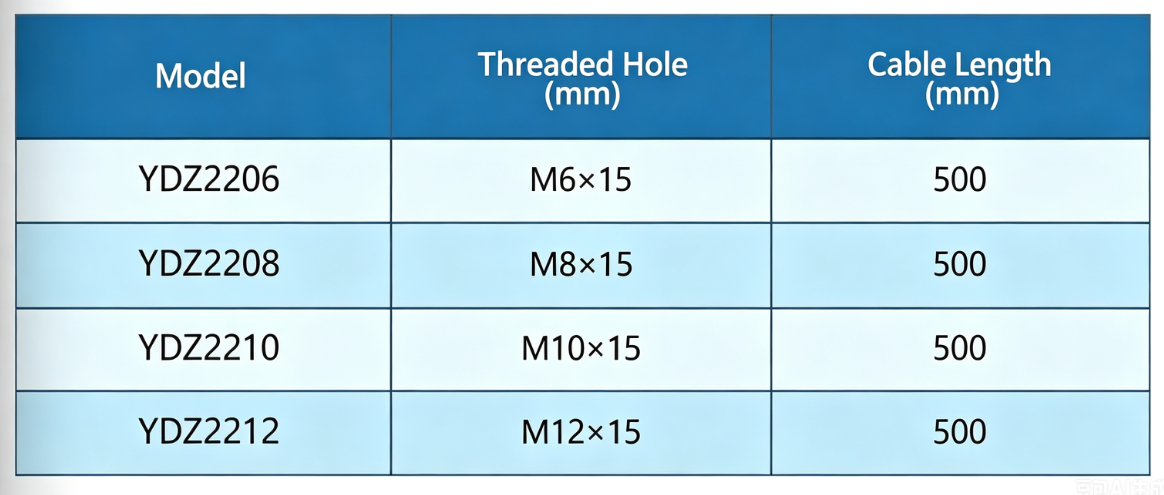

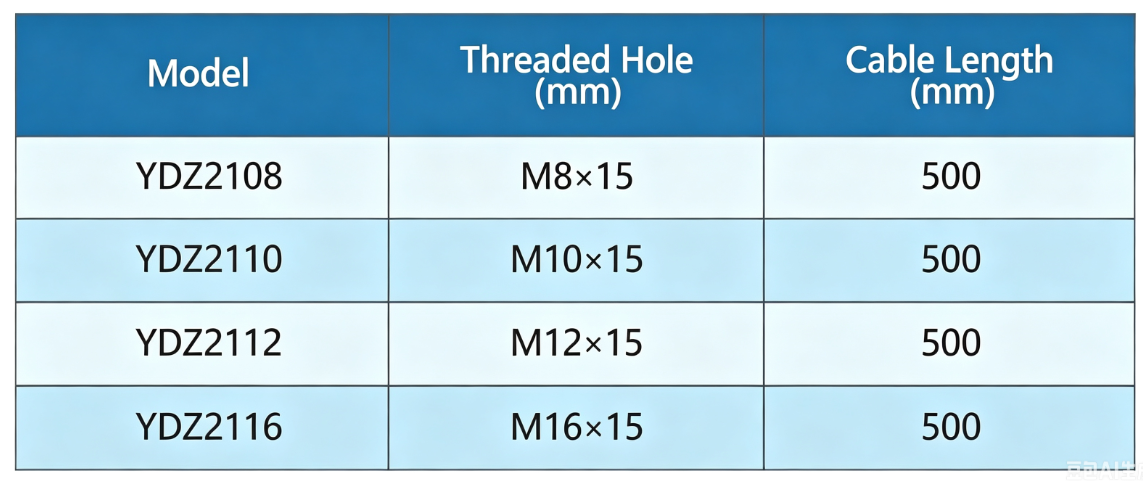

Grounding Terminal Block
The embedded stray current extraction terminal is constructed by joining a copper terminal to a round steel bar using an exothermic welding process. By utilizing copper only for specific parts of the assembly, this design reduces copper consumption and lowers costs.
This embedded extraction terminal is a single, integrated unit formed via exothermic welding, ensuring excellent control over the welding process and quality. On-site installation requires only steel-to-steel welding, simplifying the procedure and making it easier to guarantee weld quality.
